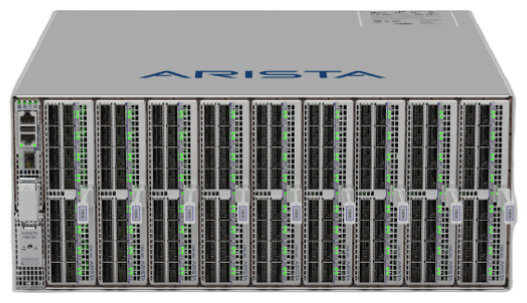

Arista 7280R3A Modular Series

4RU modular switch-router at 14.4 Tbps with 512-way ECMP, MACsec, IPsec, and 400G ZR/ZR+ coherent optics for large-scale data center and service provider networks.

Ports: Up to 144x 100G or 36x 400G (9 I/O module slots; mix of DCS-7368-16S, DCS-7358-16C, DCS-7368-4D, DCS-7368-4P line cards) | Up to 144x 100G or 36x 400G (9 I/O module slots); MACsec + IPsec + VXLANsec encryption on all speeds 10G–400G | Up to 144x 100G or 36x 400G (9 I/O module slots); large-scale routing (up to 5M+ IPv4 routes), Algorithmic ACLs, enhanced MACsec Capacity: 14.4 Tbps Pps: 5.4 Bpps Form Factor: 4RU modular Latency: From 3.8 µs

Arista Products

Arista 7280R3A Modular Series

Arista 7280R3A Modular Series
Up to 144x 100G or 36x 400G (9 I/O module slots; mix of DCS-7368-16S, DCS-7358-16C, DCS-7368-4D, DCS-7368-4P line cards), 14.4 Tbps, From 3.8 µs latency

DCS-7289R3A-BND-D-F
Our Price: Request a Quote

Get a Quote

Arista 7280R3A Modular Series
Up to 144x 100G or 36x 400G (9 I/O module slots); MACsec + IPsec + VXLANsec encryption on all speeds 10G–400G, 14.4 Tbps, From 3.8 µs latency

DCS-7289R3AM-BND-D-F
Our Price: Request a Quote

Get a Quote

Arista 7280R3A Modular Series
Up to 144x 100G or 36x 400G (9 I/O module slots); large-scale routing (up to 5M+ IPv4 routes), Algorithmic ACLs, enhanced MACsec, 14.4 Tbps, From 3.8 µs latency

DCS-7289R3AK-BND-D-F
Our Price: Request a Quote

Get a Quote

The Arista 7280R3A Modular Series is the MACsec-capable modular variant within the 7280R3 switch-router family, scaling the encryption capability of the fixed 7280R3-K models into a multi-slot chassis architecture. Available in 4-slot (7280R3A-4) and 8-slot (7280R3A-8) configurations with the 7280R3A-LC-36CQ line card (36x QSFP28 100G with MACsec), the platform delivers up to 230.4 Tbps of encrypted switching capacity with the full 7280R3 routing feature set: MPLS, Segment Routing, EVPN-VXLAN, BGP-LU, and a routing table sized for 512K IPv4 host routes, 256K IPv4 LPM routes, and 256K IPv6 LPM routes.

The modular chassis architecture allows selective per-slot encryption deployment: line-card slots facing encrypted inter-site or inter-rack links can be populated with MACsec-capable 7280R3A line cards while other slots use non-MACsec variants, avoiding the cost of encrypting internal links that do not traverse untrusted physical plant. Dual hot-swappable supervisors maintain control-plane state through failover, and the same MKA (MACsec Key Agreement) automated key-management framework as the fixed 7280R3-K models handles per-port key negotiation and rotation without manual intervention.

Per-Slot MACsec Encryption

Populating only the line-card slots facing external or untrusted links with MACsec-capable 7280R3A cards avoids encrypting all internal switch-to-switch links within the same facility. This selective model reduces the overall cost of encryption deployment relative to fixed-platform designs where every port on the switch carries the MACsec hardware regardless of whether that port requires encryption.

4- and 8-Slot Chassis Scalability

Starting with a 4-slot chassis and expanding to 8 slots as port count requirements grow provides a capital-efficient path for organisations that are expanding encrypted inter-site connectivity incrementally. The 4-slot chassis uses the same supervisor module, line cards, and EOS version as the 8-slot, so the upgrade path requires only the new chassis and additional power modules, not new licensing, software qualification, or line-card replacement.

Full 7280R3 Routing Feature Set

The 7280R3A Modular retains the complete 7280R3 routing capability (MPLS, SR-TE, EVPN-VXLAN, BGP-LU, IS-IS, OSPF, 512K IPv4 host routes, 256K IPv4/IPv6 LPM routes) in the same encrypted chassis, without any feature reduction relative to the non-encrypted 7280R3. Organisations do not need to choose between full routing capability and MACsec; the platform provides both simultaneously from a shared hardware forwarding pipeline.

MKA Automated Key Management

IEEE 802.1X MACsec Key Agreement handles session establishment, key negotiation, and periodic key rotation automatically between MKA-capable peers. Compliance requirements that mandate short key lifetimes (for example, 24-hour or 1-hour key rotation periods) are met through EOS configuration without manual re-keying operations or key-distribution infrastructure beyond the standard BGP/IGP control plane already present in the network.

Technical Specifications

Full specifications for Arista 7280R3A Modular Series

Supervisor slots

1
Linecard Slots

9
Power Supply Slots

4 (N+N Redundant)
Fan Modules

5 (N+1 Redundant)
Size (H×W×D)

7" x 17.4" x 27.1" (17.9 x 44.2 x 68.83 cm)
Rack Space

4 RU
Weight (Chassis only)

30 lbs (13.6 kg)
Weight (Fully configured)

105 lbs (47.62 kg)
Typical Power Consumption

1244 W
Maximum Power Consumption

1927 W

CPU

Eight-Core x86
System Memory

64 Gigabytes
10/100/1000 Mgmt Ports

1
RS-232 Serial Ports

1 (RJ-45)
USB Ports

1
SSD Storage

240 GB
Typical/Max Power Draw

35 W / 55 W

Port Configuration

144 x 100G or 36 x 400G
System Capacity

Up to 14.4 Tbps
Packet Processing

Up to 5.4 billion packets per second
Interface Support

10G, 25G, 100G, 200G, 400G
Encryption Support

MACsec, IPsec, VXLANsec

L3 — Max IPv4 Routes

1,450K
L3-XL — Max IPv4 Routes

2,250K
L3-XXL — Max IPv4 Routes

2,850K
L3-XXXL — Max IPv4 Routes

3,950K
ECMP

512-Way

Operating Temperature

0 to 40˚C (32 to 104˚F)
Storage Temperature

-40 to 70˚C (-40 to 158˚F)
Relative Humidity

5 to 95%
Operating Altitude

0 to 10,000 ft (0–3,000m)

Documentation

Download product documentation and resources

Product Datasheet

Arista 7280R3A Modular Series Datasheet
